Moteck Control Board CI73, parallel movement up to 8 actuators, suitable for our ID10 & DLCx series

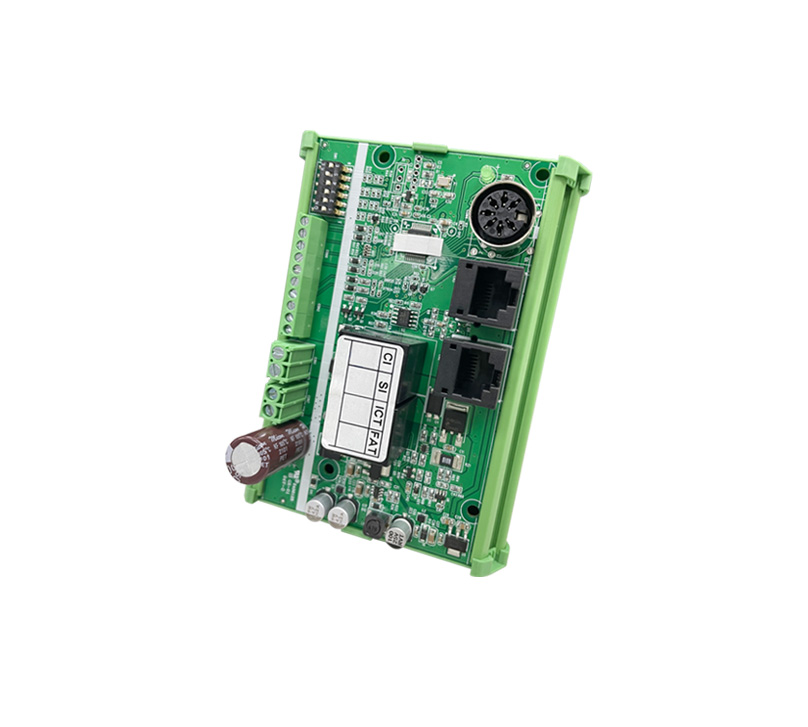

CI73 is a control PCBA suitable for industrial use and designed for synchronous movement of actuators. Each CI73 controls one actuator.

Data cables are used for mutual communication between the control boards. therefore, building the system architecture is very flexible and easy to plug and play.

The creation of the system does not require special modules or separate programming. When creating a closed network system, the main control board is defined

depending on the type of connection in the scheme. However, there are options for individual control of each actuator independently of the system.

Thanks to this feature, it is very easy to create a system to synchronize and control up to 8 sets of actuators.

Features and Options

● Main applications: Industry

● Input voltage: 24 ~ 29V DC (power cord not included, prepared by customer)

● Actuator power output: 24V DC, max. 10A

● LED operation indicator (green)

● Parameter setting: Through hardware DIP switch

● Supports POT, single Hall or dual Hall effect sensors feedback.

● Support actuators with or without stroke limit switches

● Comes with 4 plastic PCB spacers

● Control input: 5-position terminal, 2 meters control cable included (in delivery)

● Support the position memory function through hand control (must order separately)

● Duty cycle: 15%, max. 2 min. continuous ambient temperature: -20°C ~ +55°C

● Accessories: A 0.25W 120 ohm terminal resistor is included with the product for use at both ends of the synchronous communication wiring

● Max. number of actuators: 1 channel, up to 8 sets of CI73 can be connected to achieve synchronous control of 8 actuators.

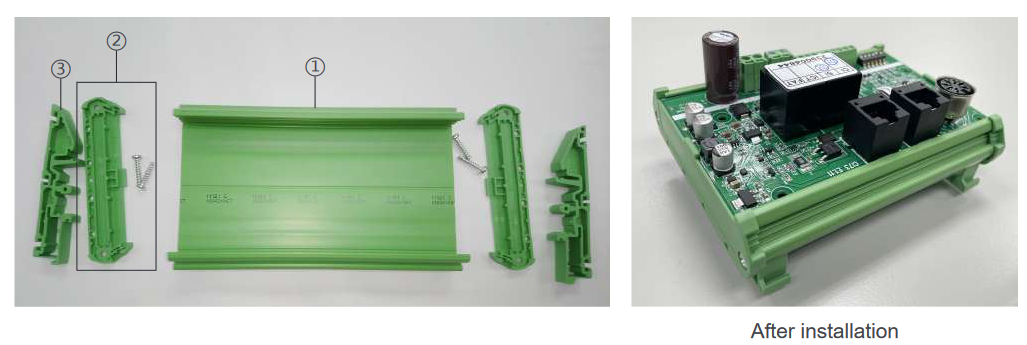

● Optional DIN rail holder (for mounting on DIN NS 32 or NS 35/7.5 rail)

● Certified: CE Marking, EMC Directive 2014/30/EU

Can be Assembled by customer
