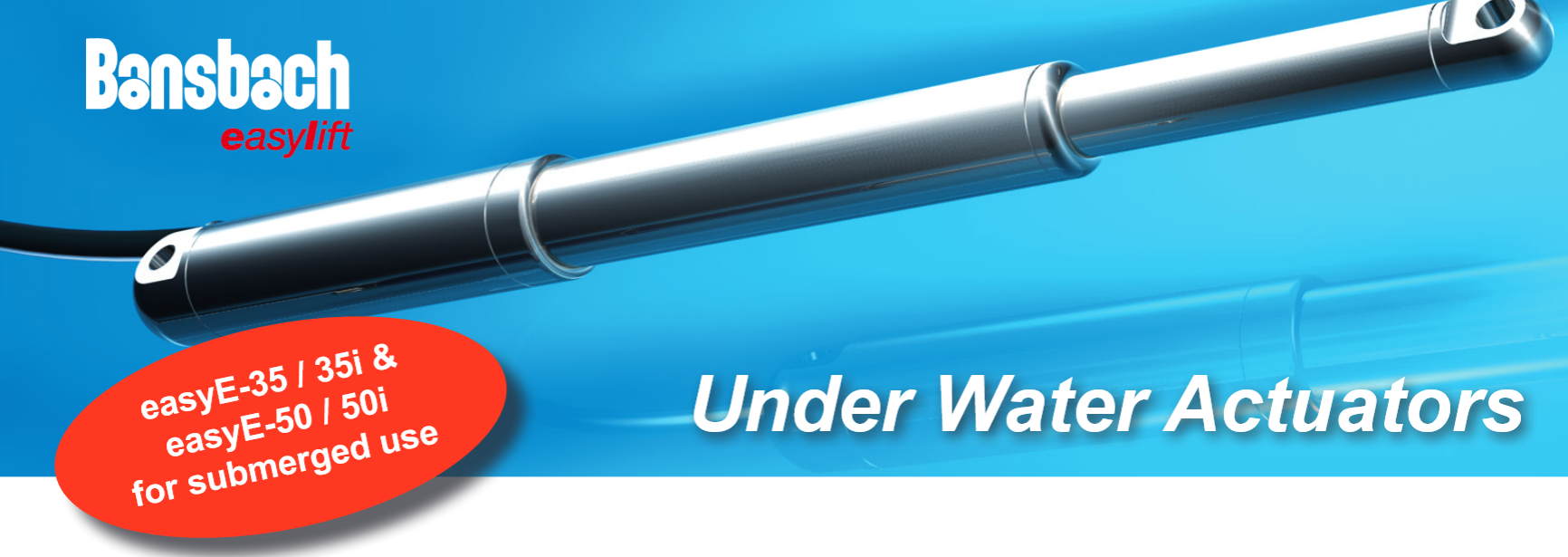

Under Water Actuators easyE-35 / 35i & easyE-50 / 50i for submerged use

The Bansbach UW100-series of actuators are developed and tested for under water applications down to 100 m.

The actuators come in stainless steel (AISI316) and have extra sealing to protect against the high water pressure.

The water tightness covers the actuator including cable. Connector or open ends are not covered by this classification.

Stroke length is limited to max. 400mm.
Hall sensor included in all models.

Recommendations and warnings:

• Never expose the actuator to hammer strike during installation or in other situations.

• Retrofitted bushings should be pressed into the bracketborings. No hammering.

• Power supply without over-current protection can cause serious damage to the actuator at mechanical end-stop or when actuator is overloaded in another way.

• Keep piston tube clean.

• Longer cable lengths may cause voltage drop which affects the performance of the actuator.

• Function of the actuator is subject to the settings of the controller. If using your own controller please contact Bansbach.

• All specifications are for 25 ºC ambient – low temperature might affect performance.

• Depending on load and application, nominal and actual stroke length may differ due to internal disc springs not being fully compressed.

• The combination of gearing and stroke can cause limitations in the use of „End limit FW“ when using the S2-30 control. See more in the datasheet for S2-30.

• The actuator is not rotationally secured
